VESNEX

Combined

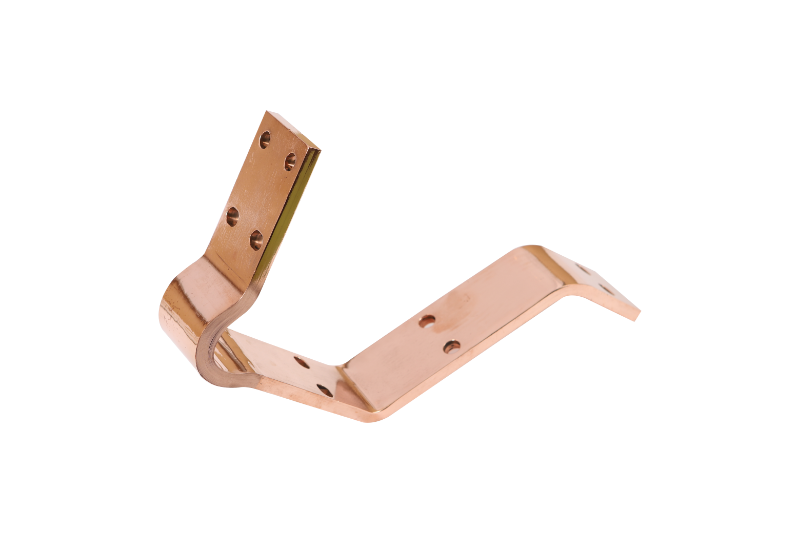

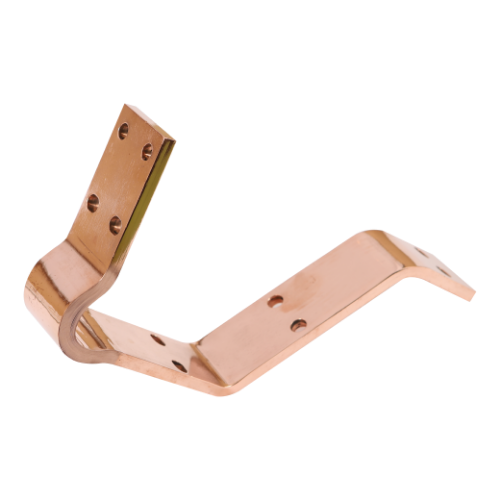

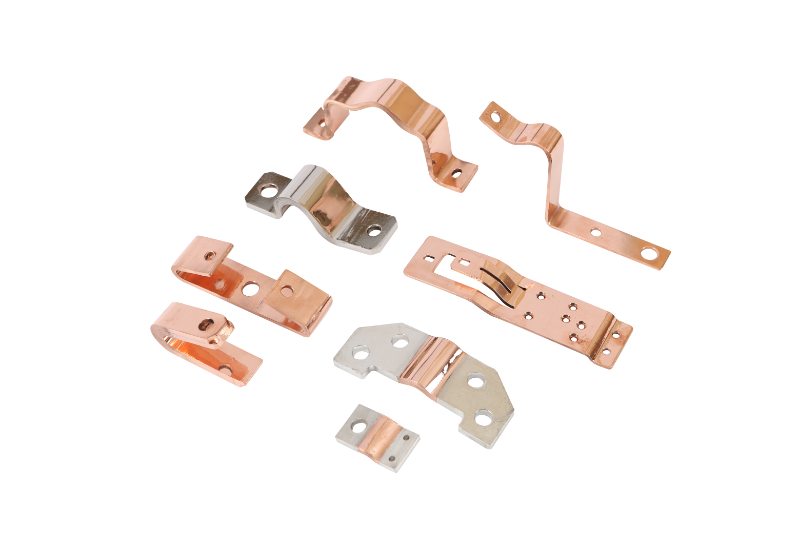

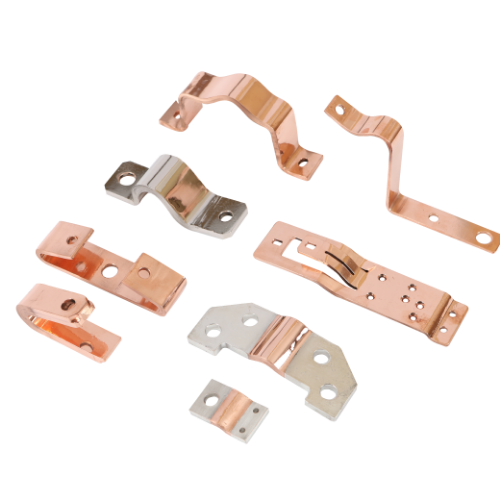

Multi-pieces (Silverbrazed / MIG welded) Copper Connectors; The combined joints are formed by assembling rigid bars with flexibles through silver or MIG welding methods. These flexibles can be designed and manufactured upon customer’s specific request. All welding processes are performed by our certificated welding personnel. Certificate of conformity can be acquired upon customer request. Application Areas; Expansion joint between the transformer and the busbars in steel plants Expansion joint in transformers Expansion joint in wind turbines Expansion joint in special machines Expansion joint between busbars in cases that requires a specific joint connection Technical Features; Raw Material Used: Cu ETP tubes, bars or rods acc. to EN 13601 Cu ETP, SE-Cu or Cu-OF foils acc. to EN 1652 Production Method: Press-welding, Silver Brazing or MIG welding Coating of Contact Areas: Can be silver, tin or nickel plated upon specific thickness request lsolation: Can be isolated with heat shrinkable tubes or special insulating material
