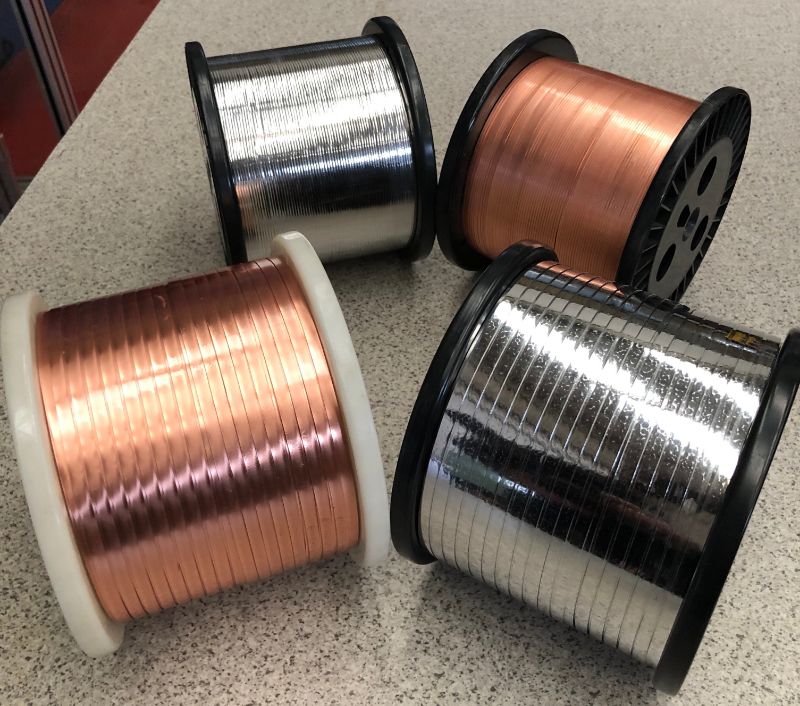

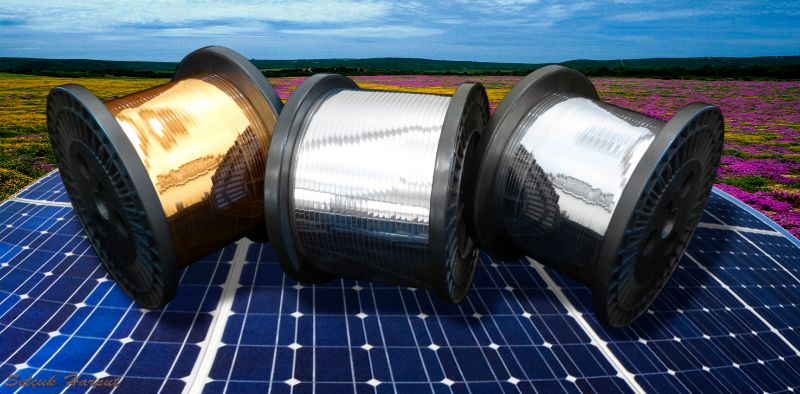

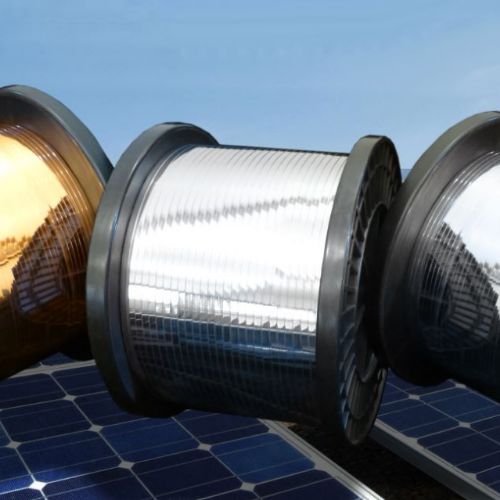

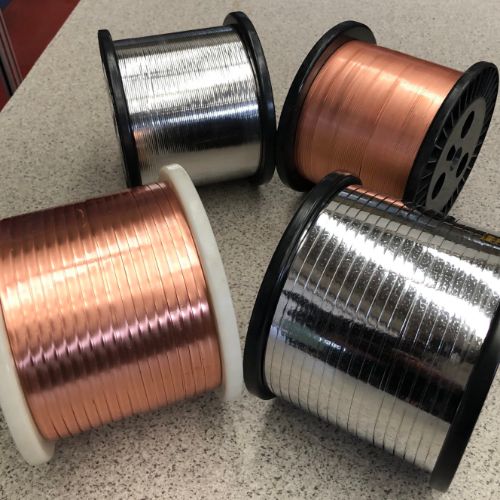

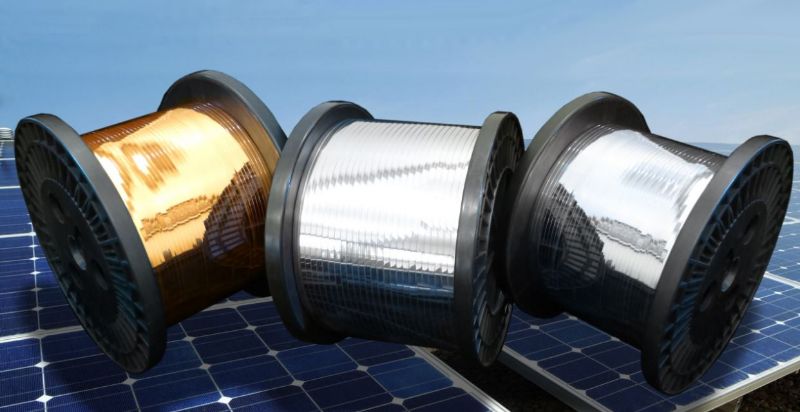

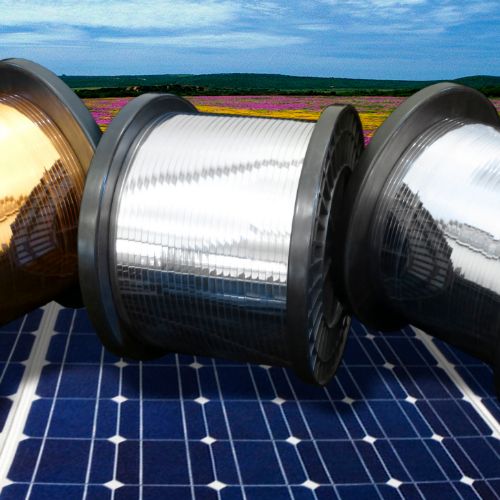

PV Ribbon Wire

Thickness : 0.080 – 0.500 mm
Width : 1.000 – 5.000 mm
Coating Thickness : 10 – 40 µm
Copper Core Material : Cu-OF
Coating Material : Bare, Sn 100, Sn63Pb37, Sn62Pb36Ag2

PV Ribbon Wire is an essential component in every mainstream solar panel and is used to interconnect solar cells and provide connection to the junction box. PV ribbon wire tin or solder coated copper ribbon between 1 mm – 6 mm wide and 0.08 mm – 0.5 mm thick with a 10 – 30 micron thick solder coat. The quality of Sarkuysan’s PV ribbon and its soldering to the sollar cells is essential to ensure panel efficiency and durability.

PV ribbon is an electrolytic tin coated or hot dip solder coated copper conductor used in photovoltaic solar panels. There are two types of PV ribbon: The interconnect or tabbing ribbon and PV bus bar, both needed in a typical silicon solar cell. Thin film panels usually require only bus bar.
*The interconnect ribbon is soldered directly onto silicon crystal to interconnect solar cells in a solar panel. The interconnect ribbon carries the current generated in solar cells to the PV bus bar.
*PV bus bar is a hot dip tinned copper conducter installed around the perimeter of the solar panels. PV bus bar connects interconnect ribbon to the junction box.

Fields of Application: Solar panels and other renewable energy areas.
