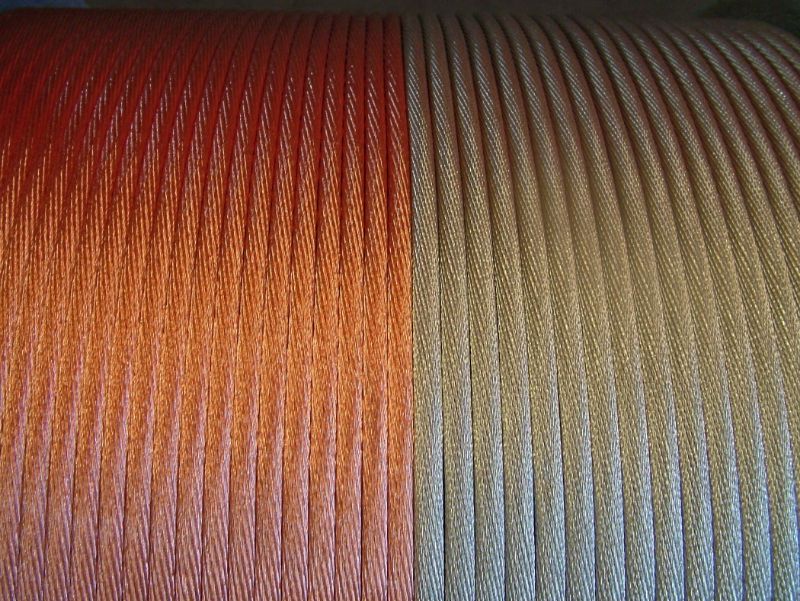

Size Range for Bunched Bare and Tin Plated Copper Conductors : 0.05 - 300 mm²
Size Range for Nickel Plated Copper Conductors : 0.20 - 300 mm²

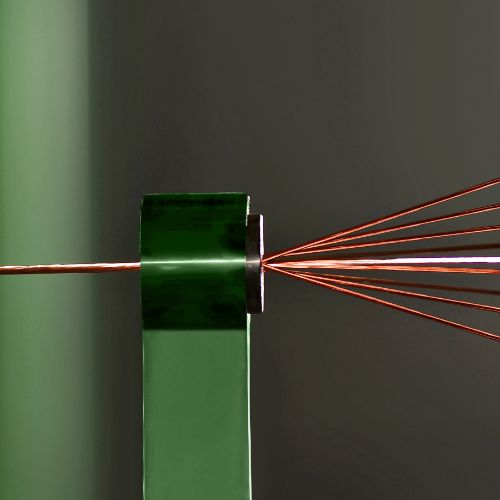

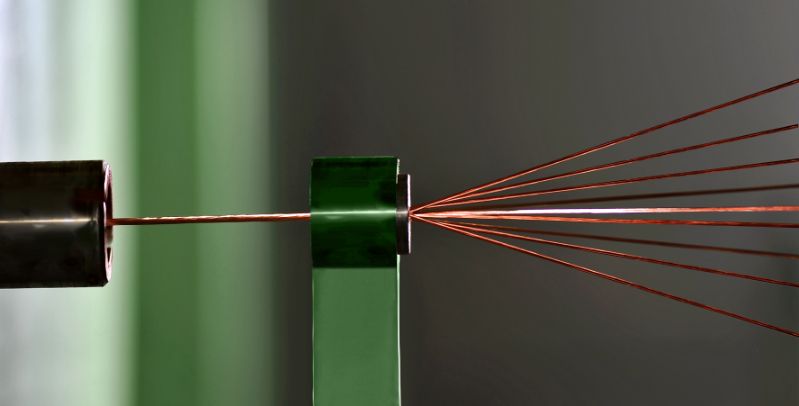

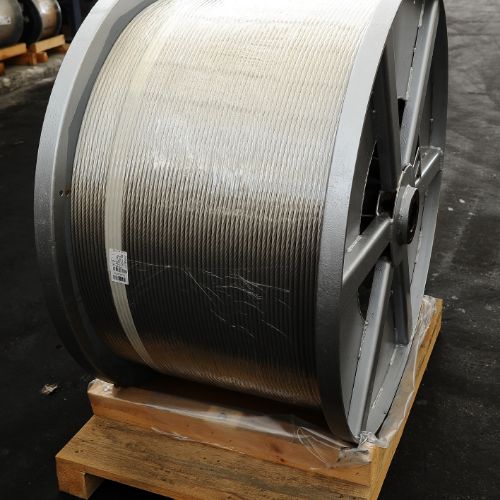

Bunched wires having cross sections from 0.05 to 300 mm² are produced by bunching a certain number of single end wires with certain diameters.
Regular Bunch: They have cross sections from 0.05 to 90 mm² and they are produced by bunching a certain number of multi wires. In regular bunch construction the respective wires do not have a defined position in the bunch cross section, the surface is irregular and the diameter and roundness varies.
Concentric Bunched Conductors: They have cross sections from 0,055 to 300 mm² and are produced by bunching a certain number of single end wires with certain diameters to obtain a defined geometric arrangement with smooth and regular surface.

Concentric Geometric Arrangement of Concentric Bunched Conductors :
Unilay Concentric : There is one or more layers of wires (1+6, 1+6+12... etc.) around one single wire at the center. Each wire layer has the same lay length and direction.
Unidirectional Concentric : Lay directions of layers are the same but lay lengths increase from center.
Equilay Concentric : Lay lengths of layers are the same but lay directions are different.
Conventional, True Concentric : Lay directions of layers are different and lay lengths increase from center.

Smoothbunch Conductors:
Produced by bunching and compacting a certain number of wires having certain diameters to form a perfect circular shape and very small lay length. Example : 10, 16, 24, 26, 30, 32, 41, etc.

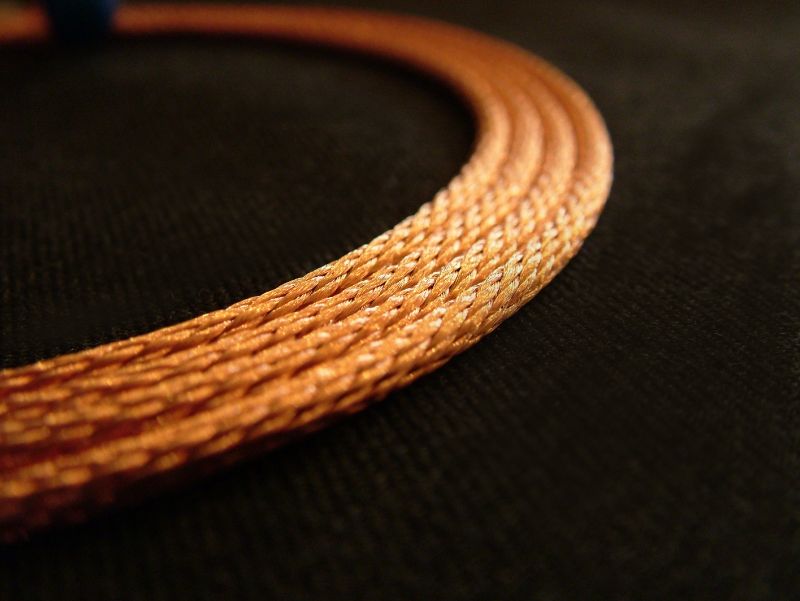

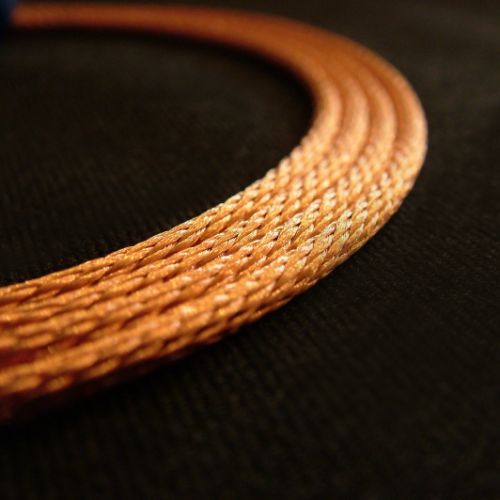

Rope-lay Conductors :
There is one or more layers of wires (1+6, 1+6+12,... etc) around one single bundle at the center. Produced by bunching of bunched or stranded concentric conductors in the same or opposite direction to form a concentric conductor and lay lengths increase from center.
