SARKUYSAN

Copper ETP and OF Wire Rod

Cu-ETP Wirerod:
NOMINAL DIAMETER RANGE : 8 mm, 11 mm, 16 mm (5/16", 7/16", 5/8" )
DIMENSIONAL TOLERANCE : ± 0.38 mm (± 0.015")
OXYGEN CONTENT : 180-300 ppm
CONDUCTIVITY : Min. 58.58 m/ohm mm², >% 101 IACS
% ELONGATION : Min. % 40
WEIGHT : Max 4000 kg (8810 lb)

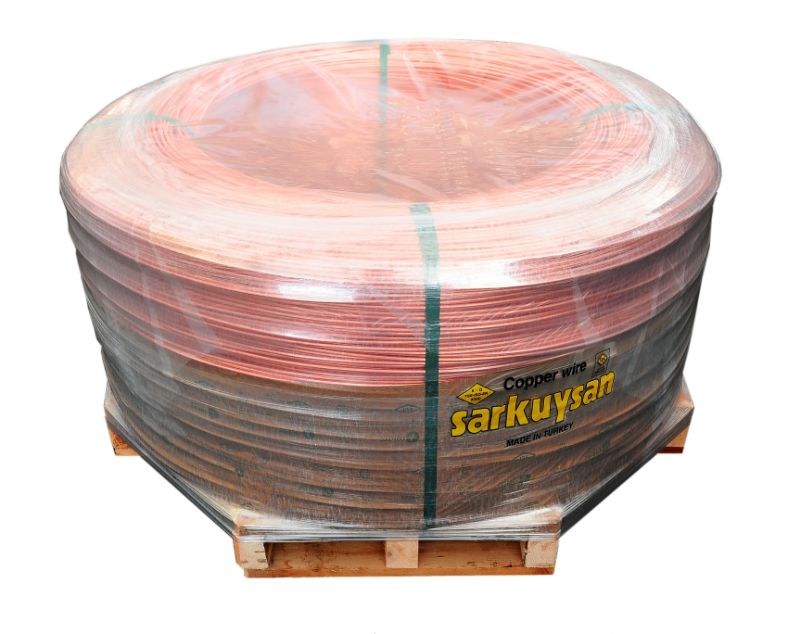

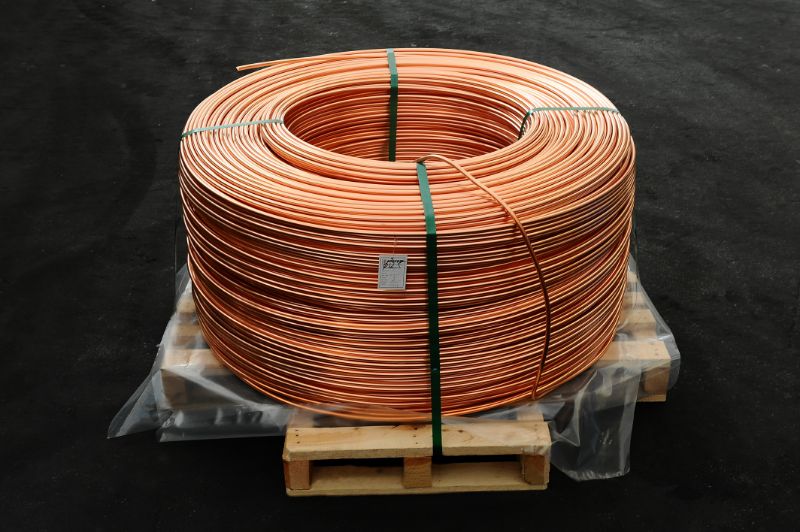

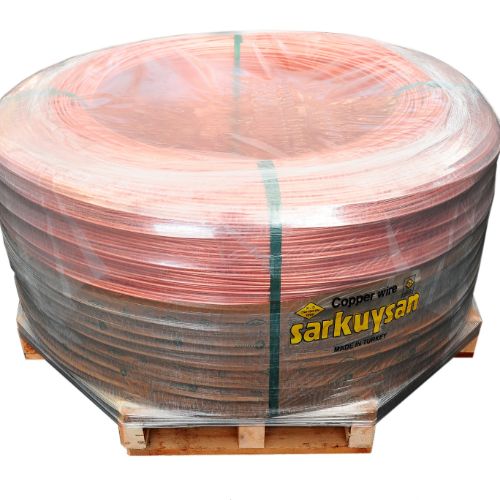

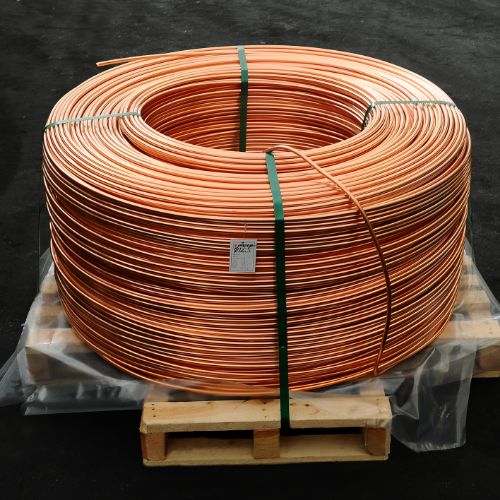

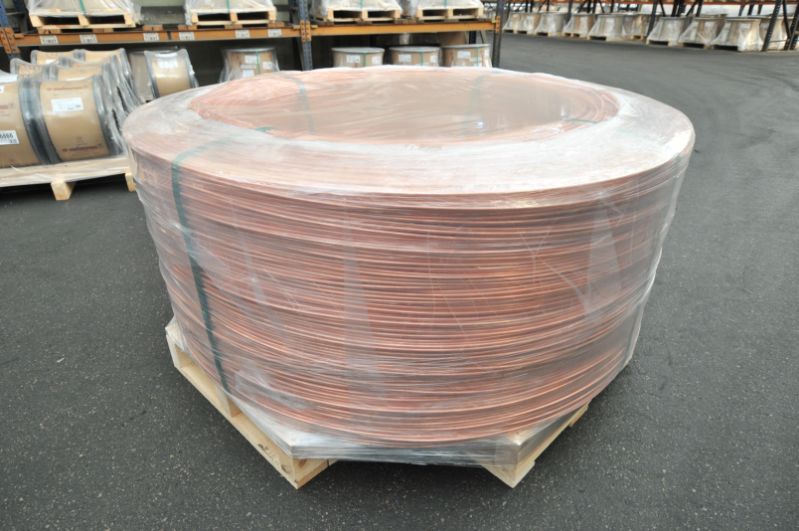

PACKAGE : Placed on wooden pallets strapped and shrink-wrapped

Cu-OF Wirerod:
NOMINAL DIAMETER RANGE : 8.00 - 12.5 - 19.00 - 20.00 - 25.00 mm (5/16", 31/64", 3/4", 25/32", 63/64")
DIMENSIONAL TOLERANCE : ± 0.38 mm (± 0.015")
OXYGEN CONTENT : Max. 3 ppm
CONDUCTIVITY : Min. 58.58 m/ohm mm² (>% 101 IACS)
% ELONGATION : Min. % 35
WEIGHT : Max. 3100 - 4000 kg (6830 - 8810 lb) (depends on diameter)

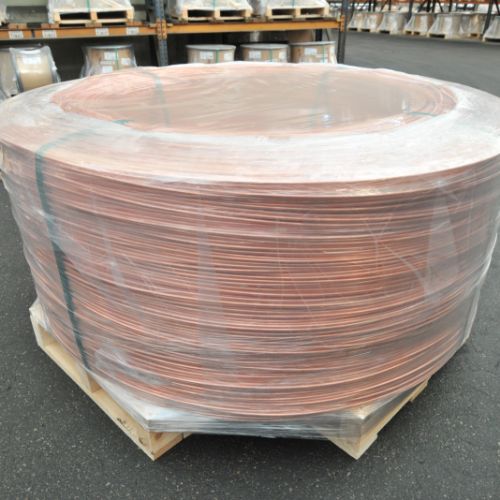

PACKAGE : Placed on wooden pallets strapped and shrink-wrapped
Certificates
  • Cu-ETP Wirerod: STANDARDS : ASTM B49, EN 1977 Cu-OF Wirerod: STANDARDS : ASTM B170, ASTM B49, EN 1977
}
