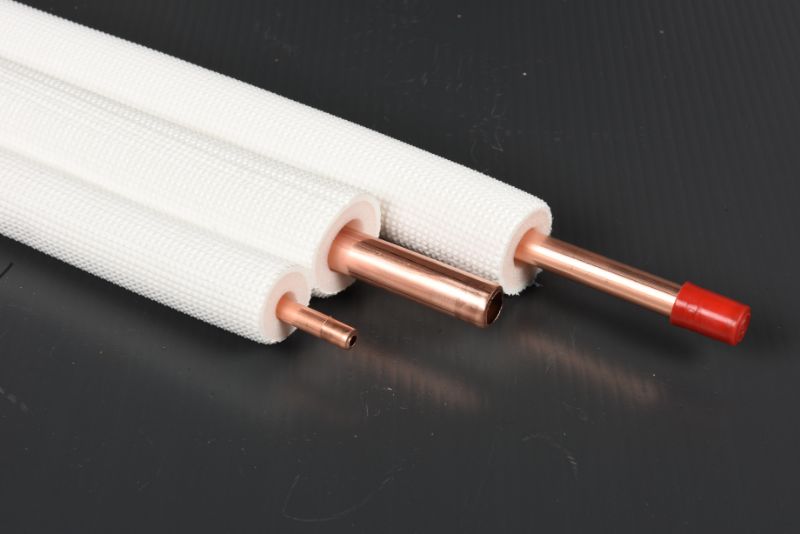

The specially developed sks®-PE quality, PE based, white insulation materials are more suitable for external applications. This product group also could be preferred upper grout applications because of its aesthetic image and because of its resistance to atmospheric conditions and UV resistance. 9-13 mm thick, rubber based insulation materials are more suitable for internal applications. sks®-K type insulating material has high water vapor permeability (μ=7000).
Both Class B, B-s2-d0; Class 0 insulation materials comply with standards in the terms of fire resistance and safely be used between -45 °C / +110 °C.

INSULATED TUBE SIZES
Copper Tubes Outside Diameter : 6.35 - 9.52 - 12.70 - 15.87 - 19.05 mm (1/4"- 3/8" - 1/2" - 5/8" - 3/4")
Copper Tubes Wall Thickness : 6.35x0.80mm, 9.52x0.80mm , 12.70x0.80/0.90mm, 15.87x1.00mm, 19.05x1.00mm
Insulation Material Thickness : White (PE) 9mm , Black (Rubber) 9mm-13mm
Single and double (pair) insulated types are available.

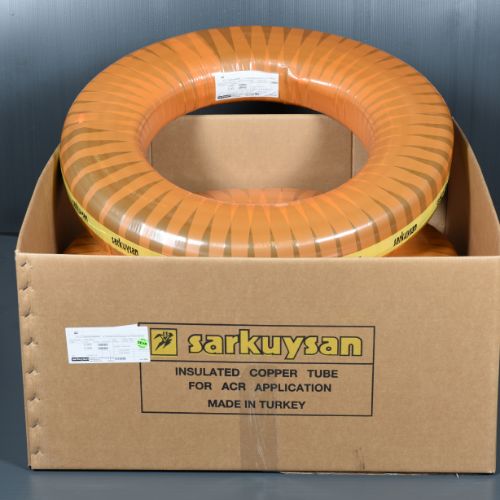

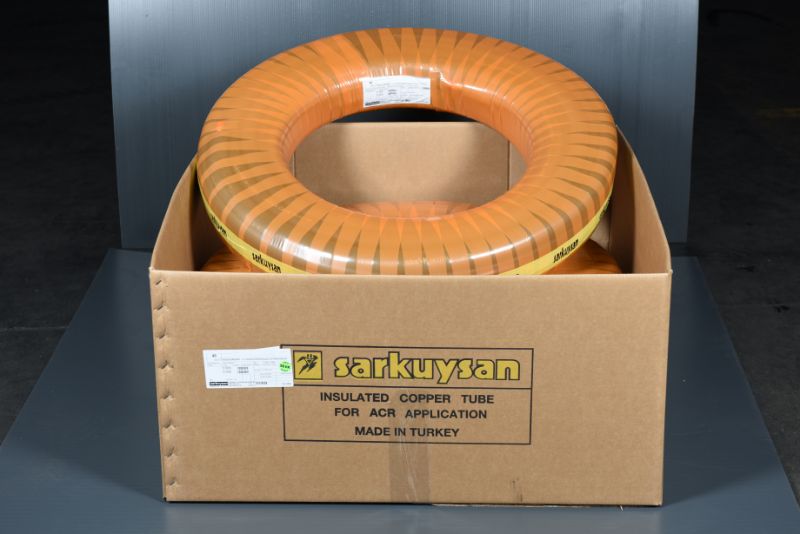

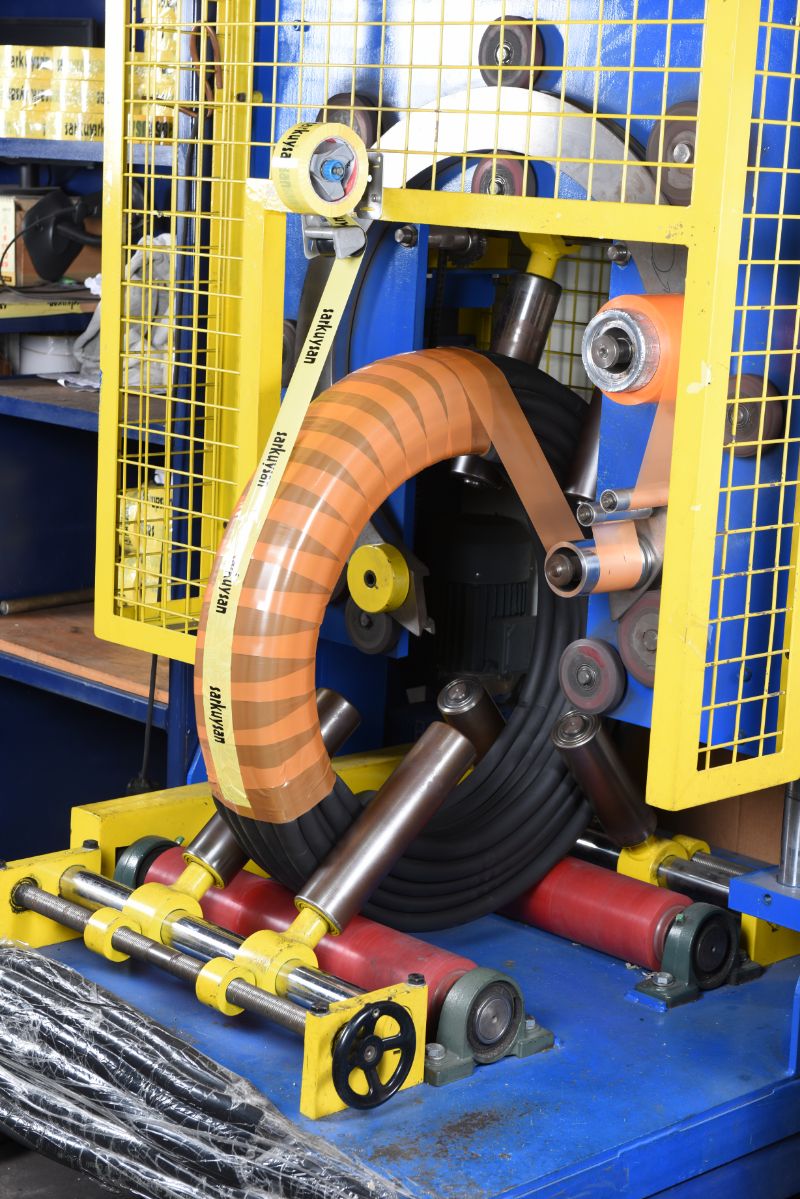

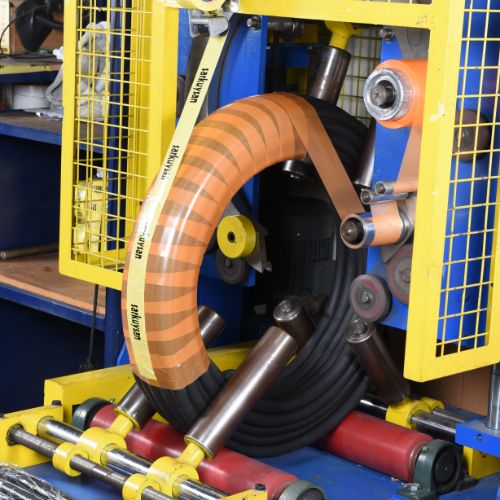

• Insulating materials inserted 50 m. copper coils are packaged separately and put in carton boxes. They will be delivered on wooden pallets in shrink-wrapped form.
• All our copper tubes are produced in accordance with EN 12735-1 standard.
